Cross-Functional Workflow & Case Management System
Problem Focus: Operational Visibility × Cross-Departmental Handoff Governance
An internal workflow and case lifecycle governance system that structures daily work into distinct hierarchy levels (Task, Case, Project), establishing unambiguous handoff boundaries and preserving operational continuity during employee leave without invasive surveillance.
Operational Friction & The Pre-System State
Daily inter-departmental handoffs between customer service, logistics, sales, and administration were handled through verbal requests, chat messages, and personal spreadsheets. When employees took leave, unrecorded handoffs led to operational disruptions.
- Operational disruption during employee leave was frequently misdiagnosed as an individual attendance issue rather than a lack of workflow documentation.
- Unclear ownership boundaries between customer service, warehouse, and sales caused unresolved customer issues to stall without clear accountability.
- Important process context was lost across informal chat channels, leaving no auditable history for recurring operational problems.
The Governance Dilemma & Rejected Naive Rules
Improving workflow visibility in a ~30-person company must avoid bureaucratic paralysis or invasive employee monitoring.
Why Rejected: Complex operational incidents (e.g. GDP distribution discrepancies) require multi-stakeholder case investigations, not simple checklist items.
Why Rejected: Micro-surveillance destroys trust, encourages metric gaming, and fails to capture the substantive quality of problem resolution.
System Design & Processing Pipeline
The platform establishes a 3-tier operational taxonomy and role-based lifecycle state machine. It explicitly differentiates an Activity (evidence of work) from a Task (bounded execution item) and a Case (multi-stakeholder investigation requiring historical context).
Visual Evidence & Interface Walkthrough
Selected interfaces from working prototypes, showing how the process and governance principles above translate into operational workflows.

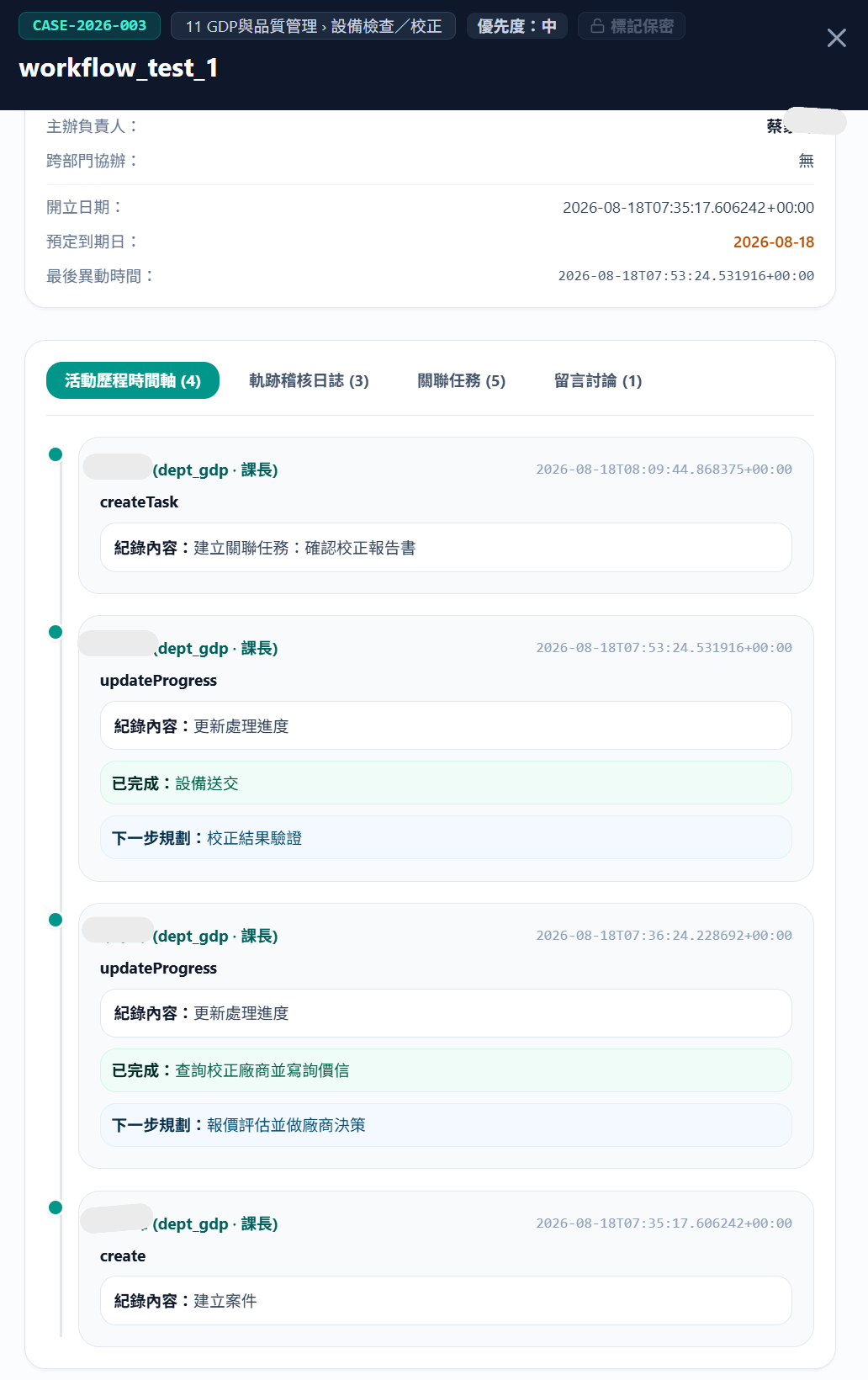

Traceable Activity Timeline & Process History
The case model preserves not only current status but also who acted, what changed, what was completed, and what comes next—creating traceable organizational memory across handoffs.
Provides concrete evidence of chronological activity logging (actions, timestamps, actors, completed deliverables, and next steps) to preserve institutional memory across handoffs.

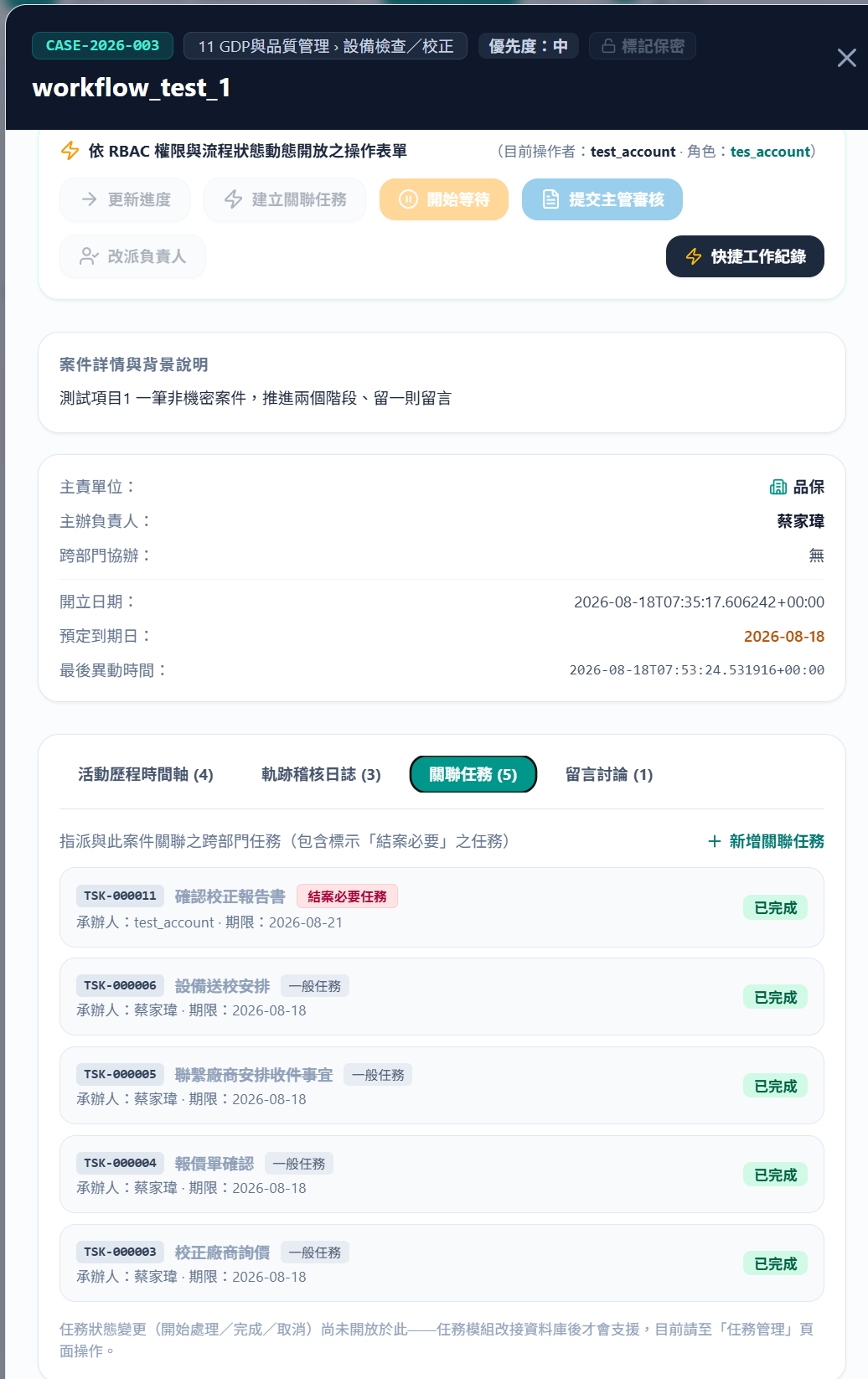

Lifecycle Governance, Linked Tasks & Dynamic RBAC
Ownership, deadlines, related tasks, and lifecycle state are maintained within the same case context, while available actions are governed by role and workflow state.
Shows cross-functional task linkages with closure-required validation, role-based action gating (assign, update, request hold, submit for approval), and clear lifecycle status tracking.
The system provides transparent process tracking to identify systemic operational bottlenecks. Bottleneck analytics are used to optimize handoffs and resource allocation, not as automated punitive measures against individuals.
Implementation Maturity & Scope
Pilot-ready · Entering employee testingFull application architecture (database schemas, role-based access rules, lifecycle state machine, handover templates) is completed and verified.
Pilot-ready · Entering employee testing
Gathering pilot feedback from internal logistics and customer service teams before org-wide rollout.
Deliberate Trade-offs
- •Requires initial logging discipline from team members compared to informal verbal handoffs.
- •Emphasizes process clarity and business continuity over ad-hoc flexibility.
Known Operational Limitations
- •Effectiveness depends on team adherence to logging handoff notes during planned leave periods.
